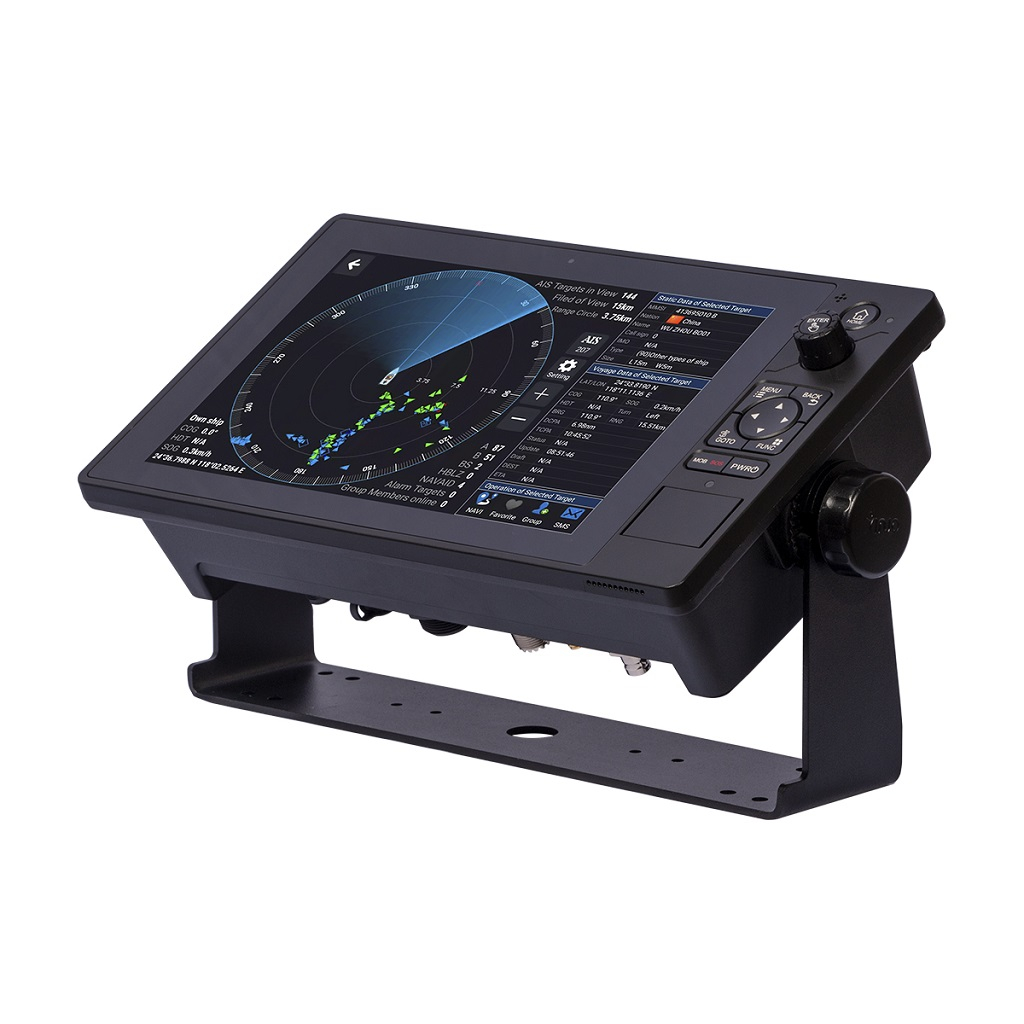

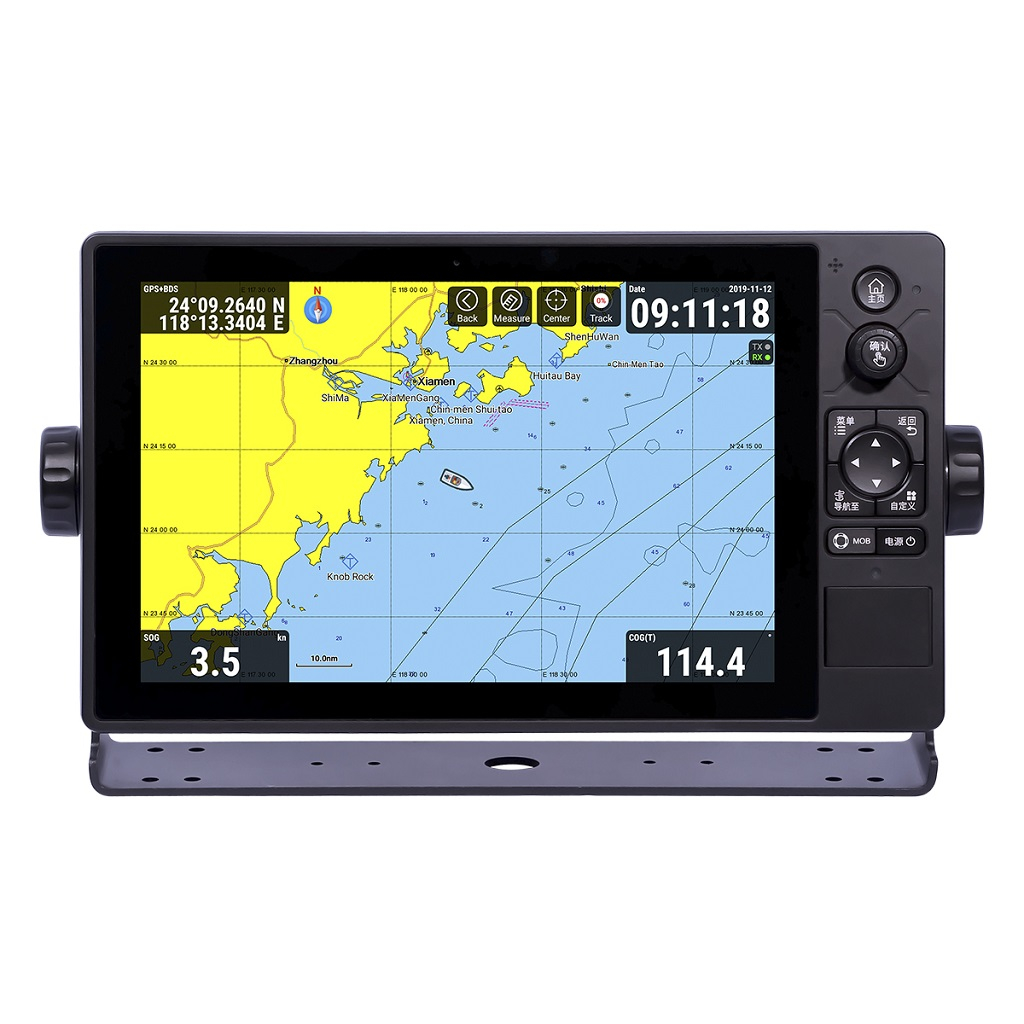

XN60 series multi-function intelligent display integrates functional modules such as GNSS, chart plotter, Class B AIS, video surveillance, etc. Using a high-performance processor, it can quickly respond to system operation to improve user experience.
◆ Passed the EU CE certification, and China Classification Society CCS type approval.
◆ The Android operating system, uses a non-air-gap multi-point capacitive touch screen with a full viewing angle.
◆ Built-in large-capacity storage, double TF expansion card slot, support 512GB Micro SD(TF) card.
◆ XN60(10.1") support GPS positioning.
◆ Support different chart formats of C-MAP (MAX), S-63, and CJ-63. It also supports overlaying satellite images on the chart.
◆ Built-in Class B AIS module, with perfect AIS function.
|
規格特點比較
|
|
型號
|
XN-60 10.1吋
|
XN-60 12.1吋
|
XN-60 15.6吋
|
XN-60 21.5吋
|
|
系統
|
智慧操作系統
|
安卓5.1, 支持OpenGL ES 3.2及OpenCL2.0
|
|
CPU
|
Cortex-A55 四核
|
|
主頻
|
2.0GHz 64位
|
|
記憶體
|
2GB DDR4 1333MHz
|
4GB DDR4 1333MHz
|
|
flash
|
16GB Flash Memory
|
32GB Flash Memory
|
|
顯卡
|
Mali-T764
|
ARM G52 2EE
|
Mali-T764
|
|
螢幕面板
|
電容多點觸控
|
|
亮度
|
600 cd/m2
|
800 cd/m2
|
600 cd/m2
|
800 cd/m2
|
|
視角
|
全視角85°
|
|
解析度
|
1280 x 800
|
1024 x 768
|
1920 x 1080
|
|
電壓
|
DC 10V~36V
|
DC 24V
|
DC 11V-30V
|
|
音訊輸出
|
2W
|
蜂鳴器
|
|
Micro SD卡
|
1個SD卡槽，支持FAT32、NTFS格式的512GB高速 Micro SD(TF)卡
|
支持通過USB接入HUB
|
|
前鏡頭
|
800萬畫素
|
|
NMEA0183
|
4路數據介面, 可獨立設置鮑率，其中：2路輸入 ; 1路可配置輸入/輸出; 1路輸出
|
7路數據介面, 可獨立設置鮑率 ， 其中：4路輸入; 3路輸出
|
|
NMEA2000
|
支持GNSS, AIS, 船艏向等資料通訊
|
|
符合認證
|
1. SC/+A1:E40T 8145-2011
2. IEC 61162-1:2016
3. IEC 60945:2002/COR1:2008
4. IEC 62287-1:2017
|
